AIO gateway can connect to 3 Types of protocol Meters (2 Energy & 1 Water):
- DLMS
- Euridis
- Mbus

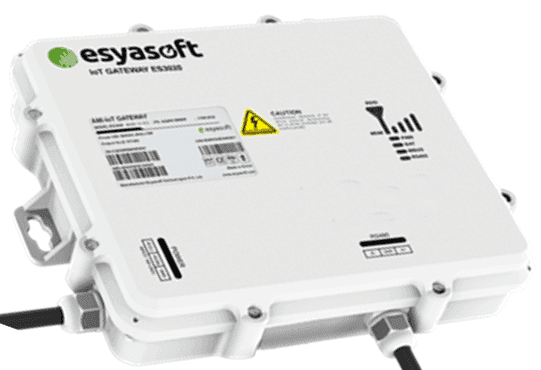

IoT Gateway - DLMS + Euridis + MBus

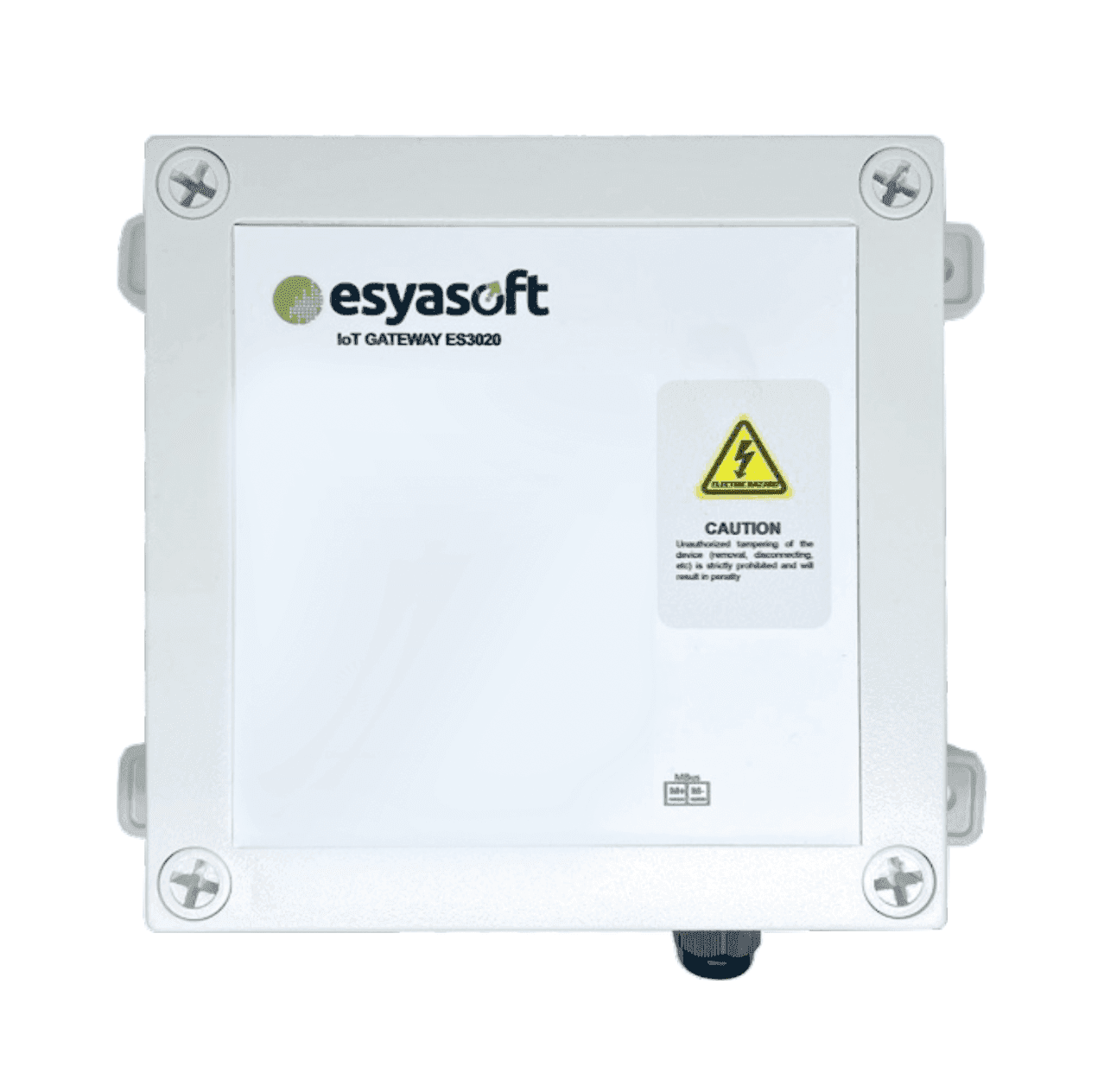

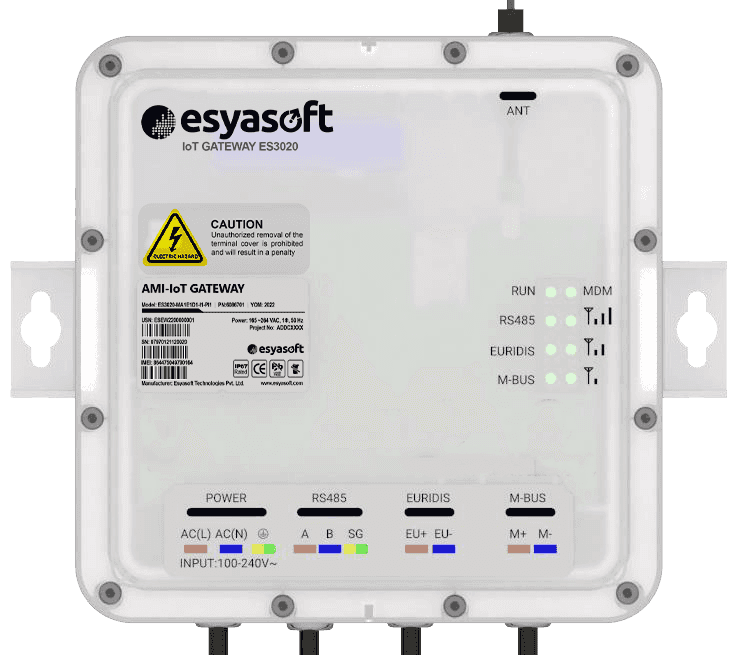

ES3020 - All In One (AIO 1:M)
Key Features
- Auto LTE Cat M1/Cat NB2/EGPRS connections (No AT command required)
- RS-485 (DLMS/IEC /ModBus) + Euridis + M-Bus Supported
- Transparent TCP and UDP protocol connections
- ModBus RTU
- Configuration and firmware upgrading via OTA
- Management and maintenance via Web
- Plastic shell, IP67 protection, support horizontal desktop placement and wall-mounted installation
- Built-in battery backup
Cellular Interface
Number of antennas
1 x MAIN (External)
Connector
SMA, female
SIM Slot
1 (1.8 V)
Standards
LTE Cat M1/Cat, NB2/EGPRS
Physical Characteristics
Ingress Protection
IP67
Housing & Weight Plastic
1.26 kg
Dimensions
250 x 175 x 75 mm
Installations
Wall mounting, screw fastening
Ethernet Interface
Number of Ports
1 x 10/100 Mbps LAN port, Magnet isolation 1.5KV
Power Supply and Consumption
Built-in
Separate power supply AC/DC converter
Part No
LM35-20B12 (Mornsun)
Input Voltage
165-264VAC
Rated Voltage
12V/3A
Maximum output power
35W
Others
Support output short circuit, over current, over voltage protection Comply with IEC/EN/UL62368, EN60335, on GB4943 certification standards
Serial Interface
Number of Ports
1 x M-Bus,1 x RS 485, 1 x Euridis
RS-485
Baud Rate
300 bps to 19200 bps, default 9600bps
Connector
3-position 3.8mm pitch, screw-type phoenix
Signal
A (Data+), B (Data-),SG
M-Bus
Baud Rate
1200 bps to 9600 bps, default 2400bps
Connector
2-position 3.5mm pitch, screw-type phoenix
Signal
M+, M-
Load Number
20 (slave current ≤150mA) or 70 (slave current≤225mA)
Euridis
Baud Rate
110 bps to 9600 bps, default 2400bps
Connector
2-position 3.5mm pitch, screw-type
Signal
Eu1, Eu2
Built-in Backup Battery
Rated output
7.4V
Rated Capacity
2600mAh
Type
Li-ion
Others
LED Indicators
1 x RUN 1 x M-BUS 1 x RS 485 1 x EURIDIS 3 x RSSI
Built-in
RTC, Watchdog, Timer
Software Features
Network Protocols
PPP, TCP, UDP, ICMP, HTTP,HTTPs, DNS, NTP, SMTP, Telnet, SSH2, MQTT, CoAP etc.
VPN Tunnel
IPsec, OpenVPN, GRE
Management
Web, CLI
Protocols
Transparent, TCP, ModBus, RTU Logger, IEC 62056-21, DLMS,M-Bus, Euridis
