DLMS gateway can connect to 1 Type of protocol Meter (1 Energy): 1. DLMS

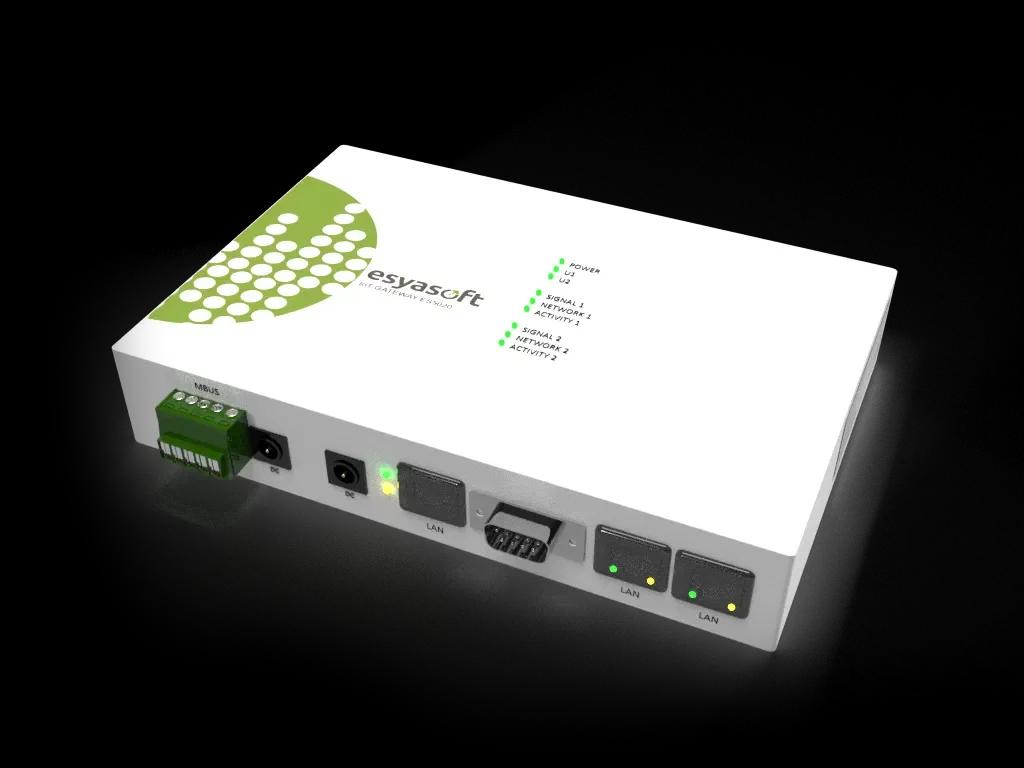

IoT Gateway - DLMS CX
ES5020 - DLMS 1:1
Key Features
- DLMS / IEC / ModBus Supported
- Remote access via Modem Remote Configuration, Remote Firmware Update (FOTA)
- Robust Industrial Design -40⁰C ~ +80⁰C extreme working environment temperature
- Plastic shell, IP54 protection, support horizontal desktop placement and wall-mounted installation
Physical Characteristics
Ingress Protection
IP54
Housing & Weight
ABS Plastic, 200g
Dimensions
96mmx116mmx32mm
Installations
DIN rail mounting, Screw fastening
Power Supply
Standard
3 Phase AC Powered
Range
210~460 VAC
Frequency
47 to 63 Hz
Compatibility
Support single phase or three phase input power,4KV AC high isolation voltage, over current, over voltage protection Comply with IEC
Connectors
Pin Type 4 pins - 3 phase (R/Y/B/N) with isolation
Cellular Interface
Number of antennas
VSWR: ≤1.5（dB）
SIM slot
1.8V/3V SIM/UIM
Frequency range
698-960/1710-2700MHz
Bandwidth:
5-20 MHz
Serial Interface
Number of ports
1 x RS-485
Serial link
1 x USB Type C for Debug
Modem
Standards
4G-LTE, HSDPA+, DC-HSPA+(3G), 2G support
Fallback support
4G/ 3G/ 2.5G/ 2G
Bandwidth
5-10 MHz
Transmit Power
<23dBm
Sensitivity:
<-98dBm
Data Rate
Up to 10 Mbps WAN or more
Connectors
1 x SMA female
Frequency Bands
B1 (2100 MHz)-DC-HSPA+ 4G LTE B3; (1800 MHz), B7 (2600 MHz), B20 (800 MHz), B42 (3500 MHz), Cat 6 LTE-A
Others
LED Indicators
1 x Power, 1 x System, 1 x Error, 1 x RS485, 1 x Modem, 4 x RSSI
Accessibility
Remote access via Modem Remote Configuration, Remote Firmware Update (FOTA), Desktop application for configuration, Remote Debug and on-site traffic monitoring
